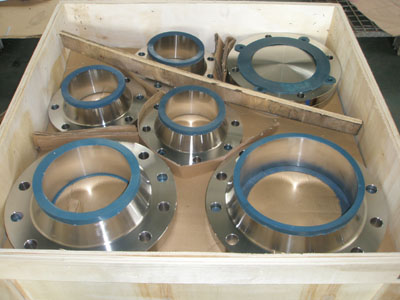

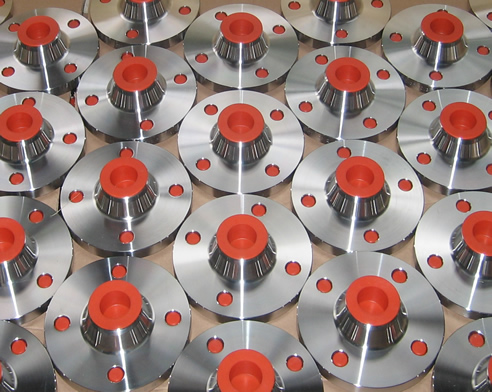

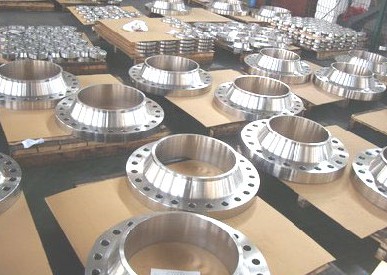

Welding Neck (WN) Flange

Standard: ASNI/ASTMB16.5 / 16.36/16.47A/16.47B B2220 – 2001, DIN2527/2636/2637/2638/2566/2576/2633/2635/2642/2653/2655.

Pressure Rate: 150LBS to 2500LBS / PN10 to PN400

Dimension: 1/2" to 48"

Material: Carbon steel, Alloy Steel, Stainless steel.

Sealing type: RF, FF, MFM, TG,RTJ

Pressure rating:
class 150LBS、300LBS、400LBS、600LBS、900LBS、1500LBS、2500LBS

Dimensions:
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48, API 605, AWWA AND DRAWING

Metrial:
· CS
Standard: ASTM / ASME A/SA 105 / 350 LF 2
· SS
Standards: ASTM / ASME A/SA 182
Steel Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
· AS
Standard: ASTM / ASME A/SA 182
ASTM A182 F1, F11, F12, F22, F5, F9, F91.
· Nickel Alloy
Standard: ASTM / ASME SB 564 / 160 / 472
Grade: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
