Piping systems are essential in various industries, including plumbing, oil and gas, chemical processing, and HVAC. Pipe fittings and connections are vital components that ensure the efficient and safe flow of materials. This guide provides a complete overview of pipe fittings, types, materials, and how they contribute to strong, reliable piping system connections.
Pipe fittings are components used to connect pipes, change their direction, alter their diameter, or branch the piping system. These fittings play an essential role in building a stable, leak-proof piping network, ensuring proper alignment and adaptability to various requirements.
Fittings come in different shapes, sizes, and materials, chosen based on the application, type of fluid transported, and environmental conditions. Typical pipe fittings include elbows, tees, reducers, unions, and couplings.
Pipe fittings come in many forms, each serving specific functions within a piping system. Here’s an overview of some common types:

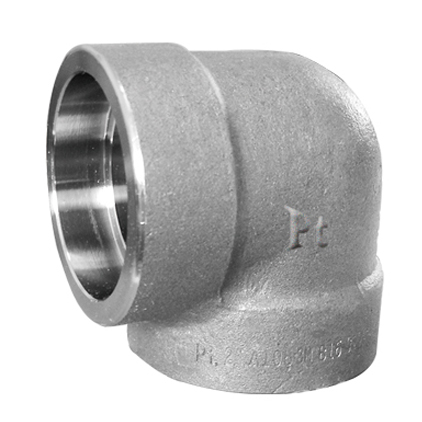

1. Elbows: Elbows are used to change the direction of flow within a piping system, typically at 45° or 90° angles. They help navigate around obstacles or adapt the pipeline layout as needed.

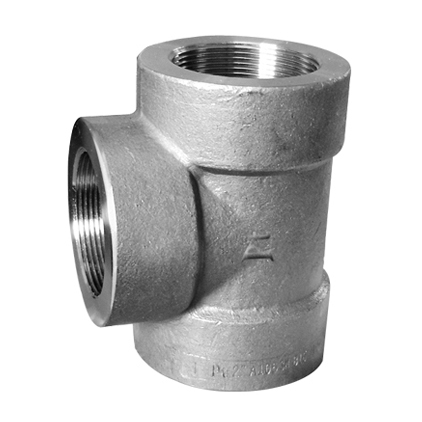

2. Tees: Tees create branch connections, allowing for splitting or combining flows. Common in applications where multiple pipelines need to merge or diverge.
3. Reducers: These fittings connect pipes of different diameters, often used to maintain flow consistency when the pipe size changes.
4. Couplings: Couplings connect two straight pieces of pipe, providing stability and continuity in the line. Some couplings can also accommodate minor pipe length adjustments.

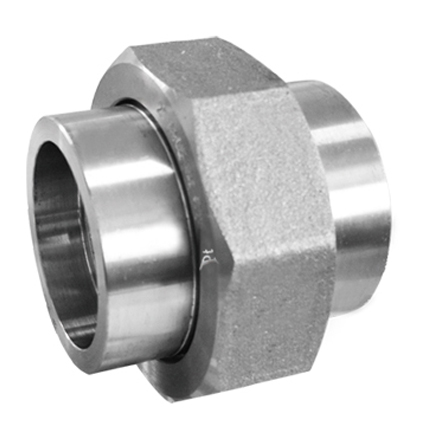

5. Unions: Unions offer easy disassembly of pipe sections, commonly used in areas where maintenance is frequently required.
6. Caps and Plugs: Caps seal the end of a pipe, while plugs close off pipe sections temporarily.
The choice of material for pipe fittings depends on factors such as the transported substance, temperature, pressure, and environmental conditions. Here are popular materials and their applications:
1. Steel: Often used for industrial and high-pressure applications, steel is strong, durable, and resistant to corrosion. Stainless steel, in particular, is chosen for its anti-corrosive properties.
2. Copper: Copper is widely used in plumbing systems due to its resistance to corrosion and suitability for hot water lines. It’s commonly found in residential and commercial applications.
3. PVC (Polyvinyl Chloride): PVC is a lightweight, cost-effective option for low-pressure applications, ideal for waste, drainage, and irrigation systems.
4. Brass: Brass fittings offer good resistance to corrosion and are suitable for hot and cold water lines. They are commonly used in residential plumbing and water-related systems.
5. PEX (Cross-linked Polyethylene): PEX fittings are flexible, making them ideal for applications that require bends without additional fittings. Common in residential plumbing for hot and cold water lines.
Pipe fittings can be joined to pipes using various methods, each offering different advantages based on the system requirements and materials involved. Here are the primary types of pipe connections:
1. Threaded Connections: Threaded connections are common in metal pipes, with threads on the pipes and fittings ensuring a secure, tight seal. These connections are popular for low-pressure applications.
2. Welded Connections: Welding offers a strong, leak-proof connection, ideal for high-pressure systems. Welded joints are commonly used in industrial applications requiring durable, long-lasting piping systems.
3. Flanged Connections: Flanges are plates or rings bolted together to connect pipes. They allow for easy assembly and disassembly, ideal for maintenance-heavy systems.
4. Soldered or Brazed Connections: Soldering and brazing involve heating a filler metal to join pipes, frequently used in copper pipes for plumbing systems.
5. Compression Connections: Compression fittings create a tight seal by compressing a ferrule onto the pipe. They are convenient for systems that may need future disassembly.
Selecting the appropriate fitting depends on factors such as fluid type, pressure, temperature, and system layout. Consider these factors when choosing fittings:
1. Application Requirements: Identify the flow, pressure, and temperature of the system to select a compatible fitting material and connection method.
2. Corrosion Resistance: For systems exposed to corrosive fluids or environments, choose fittings made of corrosion-resistant materials like stainless steel or brass.
3. Maintenance Needs: In systems requiring regular maintenance, use fittings that allow for easy disassembly, such as unions or flanged connections.
Q: What are the most durable materials for pipe fittings?
A: Stainless steel and brass are among the most durable materials, offering resistance to corrosion and longevity in high-pressure or corrosive environments.
Q: Can different fitting materials be combined in a single piping system?
A: Yes, but compatibility must be considered, especially with metal fittings. Some metals can cause galvanic corrosion when connected directly, so consult material compatibility guidelines.
Q: How can I prevent leaks in pipe connections?
A: Properly secure fittings by using thread sealants, gaskets, or soldering where appropriate, and ensure fittings are correctly aligned during installation.
Pipe fittings and piping connections are crucial for creating a reliable system. Selecting the right fittings based on material, type, and connection method ensures efficient flow and reduces maintenance needs in the long run.
