Differences Between Flanges and Couplings

Flanges and couplings are both mechanical components used in various engineering and industrial applications, but they serve different purposes and have distinct characteristics. Let's explore the key differences between flanges and couplings:

Flange:

1. Definition:

A flange is a flat, typically circular disc with evenly spaced holes for bolts or studs. It is designed to connect pipes, valves, pumps, and other equipment to form a piping system.

2. Function:

Flanges are primarily used for joining two sections of a pipe or connecting a pipe to a pressure vessel, pump, or other components. They provide a method for easy assembly and disassembly of the system.

3. Types:

There are several types of flanges, including weld neck, slip-on, socket weld, lap joint, and blind flanges. Each type has specific applications and features, such as the weld neck flange being suitable for high-pressure applications.

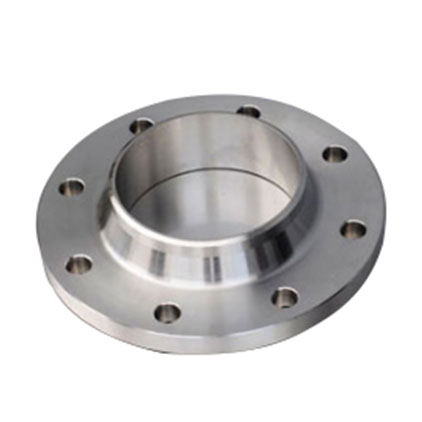

 Welding Neck (WN) Flange

4. Sealing:

Flanges often include gaskets between the mating surfaces to create a tight seal, preventing leaks in the system.

5. Pressure Rating:

Flanges are designed to withstand specific pressure ratings, and the selection of a flange type depends on the pressure requirements of the application.

Coupling:

1. Definition:

A coupling is a device used to connect two shafts together for the purpose of transmitting power. It joins the ends of two shafts and allows them to rotate together while accommodating misalignments.

2. Function:

Couplings are primarily used for transmitting torque and rotational motion between shafts. They are crucial in mechanical systems where precise alignment is necessary for efficient power transmission.

3. Types:

Couplings come in various types, such as rigid couplings, flexible couplings, gear couplings, and fluid couplings. The choice of coupling depends on factors like the degree of misalignment, torque requirements, and the specific application.

4. Flexibility:

Flexible couplings are designed to compensate for misalignments between shafts, providing a degree of flexibility. This feature helps reduce the transmission of shock and vibration in the system.

5. Applications:

Couplings are commonly used in machinery and equipment where rotational motion needs to be transmitted. They find applications in pumps, motors, fans, and any system where the power from one shaft needs to be transferred to another.

Summary:

In summary, flanges are primarily used for connecting and joining pipes and components in a piping system, providing a method for assembly and disassembly. They are essential for creating a sealed and secure connection in pipelines.

On the other hand, couplings are used to connect two shafts for the purpose of transmitting torque and rotational motion. They come in various types, with flexible couplings accommodating misalignments and reducing the transmission of vibration in mechanical systems. While flanges deal with the connection of pipes and components, couplings deal with the connection of rotating shafts in machinery and equipment.
