Differences Between Gate Valve And Butterfly Valve

Gate valves and butterfly valves are two common types of valves used in industrial and commercial applications. While both valves serve similar functions, they differ in design, operation, and applications. In this guide, we'll cover the main differences between gate valves and butterfly valves.

Design

Gate valves have a linear design, with a gate or wedge that moves up and down to control the flow of fluid through the valve. When the gate is lifted, the valve is fully open, and when the gate is lowered, the valve is fully closed. Gate valves typically have a flanged or threaded connection, and are available in a variety of materials, including cast iron, brass, bronze, and stainless steel.

Butterfly valves, on the other hand, have a circular or disc-shaped design, with a rotating disc that pivots to control the flow of fluid. When the disc is parallel to the flow direction, the valve is fully open, and when the disc is perpendicular to the flow direction, the valve is fully closed. Butterfly valves typically have a wafer or lug connection, and are also available in a variety of materials.

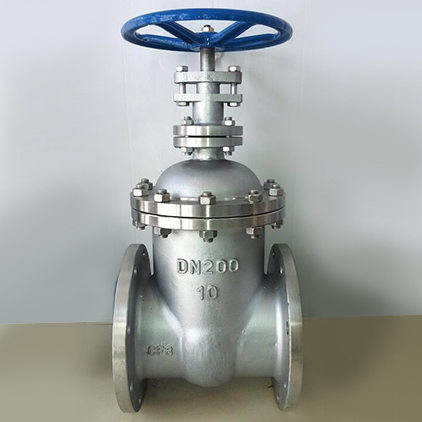

 Gate Valve

Operation

Gate valves are operated by a wheel or hand crank that turns a threaded stem, which lifts or lowers the gate. Gate valves have a slow opening and closing time, which can make them unsuitable for applications where rapid shut-off is required. Gate valves are also susceptible to jamming and require regular maintenance to ensure smooth operation.

Butterfly valves are operated by a lever or actuator that rotates the disc. Butterfly valves have a quick opening and closing time, making them suitable for applications where rapid shut-off is required. Butterfly valves are also less susceptible to jamming and require less maintenance than gate valves.

Applications

Gate valves are typically used in applications where a tight seal is required, such as in the oil and gas industry, water treatment plants, and chemical processing plants. Gate valves are also commonly used in low-pressure applications.

Butterfly valves are typically used in applications where a quick opening and closing time is required, such as in the HVAC industry, water treatment plants, and food processing plants. Butterfly valves are also commonly used in high-pressure applications.

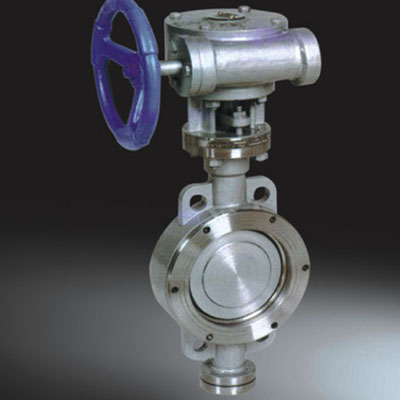

Butterfly Valve

Advantages and Disadvantages

Gate valves offer several advantages, including a tight seal, low-pressure drop, and the ability to handle high temperatures and pressures. However, gate valves also have several disadvantages, including a slow opening and closing time, susceptibility to jamming, and the need for regular maintenance.

Butterfly valves offer several advantages, including a quick opening and closing time, low-pressure drop, and the ability to handle high temperatures and pressures. However, butterfly valves also have several disadvantages, including the potential for leakage and reduced flow capacity due to the disc blocking the flow path.

Cost

Gate valves are typically more expensive than butterfly valves due to their complex design and the need for regular maintenance. Butterfly valves are generally less expensive and require less maintenance, making them a cost-effective solution for many applications.

In conclusion, gate valves and butterfly valves are two common types of valves used in industrial and commercial applications. While both valves serve similar functions, they differ in design, operation, applications, advantages, disadvantages, and cost. When selecting a valve for a specific application, it is important to consider the specific requirements and characteristics of the application, as well as the advantages and disadvantages of each valve type.
