How Do You Size U-Bolts?

Oct 24 , 2024

U-bolts are essential fasteners used in a wide range of applications, from securing pipes and cables to attaching objects to surfaces. Proper sizing of U-bolts is crucial to ensure they provide the right support and hold for the specific application. In this guide, we will explain the process of sizing U-bolts, including the key measurements to consider and tips for selecting the right U-bolt for your project.


Understanding U-Bolt Dimensions


To properly size a U-bolt, it’s important to understand the key dimensions involved. These dimensions ensure that the U-bolt will fit securely around the object and provide the required clamping force. The main dimensions include:


1. Diameter: This refers to the thickness of the rod used to form the U-bolt. The diameter is an important factor, as it affects the strength and load-bearing capacity of the U-bolt. Common sizes range from 1/4 inch to 1 inch or more, depending on the application.

2. Inside Width: This is the distance between the inner sides of the U-bolt, also called the clear width. The inside width should match the width of the object or pipe being secured. If the U-bolt is too narrow, it won't fit; if it’s too wide, it won’t clamp tightly.

3. Leg Length: The leg length refers to the straight portion of the U-bolt that extends below the curve. This length determines how deep the U-bolt can reach through the object and is critical when mounting thick materials.

4. Thread Length: U-bolts have threaded ends, and the length of these threads is another important consideration. The threads should be long enough to accommodate washers and nuts while ensuring a secure fit.

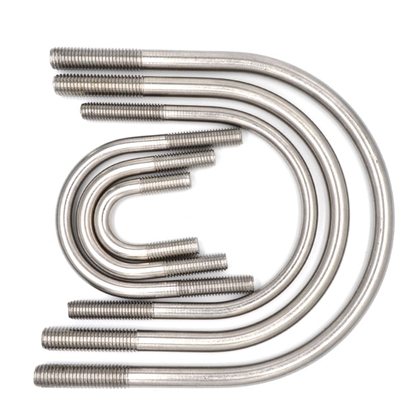

U-Bolts

U-Bolts


Choosing the Right Material for U-Bolts


In addition to sizing, the material of the U-bolt is equally important, as it determines the bolt’s durability and resistance to corrosion. U-bolts come in different materials, including:


1. Stainless Steel: Known for its corrosion resistance, stainless steel U-bolts are ideal for outdoor applications, marine environments, and areas exposed to moisture. They provide a long-lasting solution without rusting or degrading over time.

2. Carbon Steel: Carbon steel U-bolts are strong and cost-effective but require a protective coating, such as zinc plating, to prevent rust. They are commonly used in industrial and structural applications where corrosion resistance is not a primary concern.

3. Galvanized Steel: Galvanized U-bolts are coated with zinc to provide corrosion resistance at a lower cost than stainless steel. They are widely used in outdoor and heavy-duty applications where exposure to the elements is a concern.


How to Measure U-Bolts for Pipes?


U-bolts are frequently used to secure pipes in plumbing, construction, and automotive applications. When sizing U-bolts for pipes, there are specific considerations to take into account:


1. Pipe Diameter: Measure the outside diameter (OD) of the pipe to determine the inside width of the U-bolt. The U-bolt should have a width slightly larger than the pipe’s OD to fit securely around it without being too tight.

2. Load Requirements: Depending on the application, the U-bolt may need to support a specific load. For high-load applications, such as holding heavy pipes or machinery, choose a U-bolt with a larger diameter to provide more strength and support.

3. Vibration Resistance: In automotive or machinery applications, U-bolts are exposed to vibrations. In such cases, U-bolts with anti-vibration features or additional support brackets should be used to ensure stability.


Applications of U-Bolts


U-bolts are incredibly versatile and can be used in a variety of settings. Some of the most common applications include:


1. Pipe Mounting: U-bolts are widely used to secure pipes in plumbing, HVAC, and industrial systems. They keep pipes in place and prevent movement or displacement due to pressure or external forces.

2. Automotive Applications: In vehicles, U-bolts are commonly used to attach exhaust systems, suspension components, and axles. Their strong clamping force ensures stability in high-vibration environments.

3. Construction and Structural Support: U-bolts provide structural support in building projects, securing beams, brackets, and other components. Their ability to distribute loads evenly makes them a popular choice in construction.


Frequently Asked Questions About Sizing U-Bolts


How do I know what size U-bolt I need?

To determine the correct size of a U-bolt, measure the diameter of the object or pipe you want to secure and compare it with the inside width of the U-bolt. Also, consider the length of the legs based on the thickness of the material you are clamping to ensure a secure fit.

Can I use any material for U-bolts?

The choice of material depends on the environment in which the U-bolt will be used. Stainless steel is best for corrosion-prone environments, while galvanized steel offers a cost-effective alternative for outdoor use. Carbon steel can be used in indoor applications where corrosion resistance is less of a concern.

What is the difference between standard U-bolts and custom U-bolts?

Standard U-bolts come in predefined sizes and are suitable for general applications. Custom U-bolts can be manufactured to specific dimensions, materials, and finishes, making them ideal for unique or specialized projects.

Do U-bolts need washers and nuts?

Yes, U-bolts typically require washers and nuts to secure the connection. The washers distribute the load and prevent damage to the surface, while the nuts tighten the U-bolt for a strong hold.
