Pigs are devices used in pipelines to perform a variety of maintenance tasks, including cleaning, inspection, and separating different products within the pipeline. However, there are instances when a pipeline pig can become stuck, creating delays and potential safety hazards. A stuck pig can be caused by factors such as debris, changes in the pipeline’s geometry, or excessive friction. In this article, we’ll explore the best practices and steps to safely get a pipeline pig unstuck and prevent future occurrences.
Before attempting to remove a stuck pig, it's important to understand why it got stuck in the first place. Identifying the cause will help determine the best course of action for getting it unstuck. Common causes of stuck pigs include:
Pipe Diameter Variations: A pig can become stuck if there are changes in the diameter of the pipeline, such as constrictions or enlargements.
Debris and Obstructions: Accumulation of debris, rust, scale, or foreign objects within the pipeline can cause a pig to seize or become stuck.
Excessive Friction: If there is insufficient lubrication or high friction along the pipeline, it may cause the pig to stall.
Sharp Bends or Elbows: A pig may get stuck if the pipeline has sharp bends or corners that prevent the pig from moving smoothly.
Incorrect Pig Size: A pig that is too large for the pipeline may become wedged in place and difficult to move.
One of the simplest ways to get a stuck pipeline pig unstuck is to reverse the flow of the pipeline. This can often help the pig move backward to a location where it can be removed or where the obstruction can be cleared. Here's how to attempt this:
Check System Controls: Verify that the system's controls allow for reversing the flow of the pipeline. This may involve changing the direction of the pumping station or adjusting valves.
Monitor Pressure and Flow: While reversing the flow, monitor the pressure and flow rate to ensure that it is safe to do so and that no damage occurs to the pipeline.
Observe Pig Movement: If the pig begins to move in the opposite direction, continue the process until it is removed from the pipeline or freed from the stuck position.
If reversing the flow does not free the pig, a pulling tool or pig retrieval system can be used to physically remove the stuck pig. These tools are specifically designed to grip the pig and apply controlled force to extract it from the pipeline. Here’s how you can use a pulling tool:
Retrieval Tool Selection: Choose an appropriate pig retrieval tool, such as a cable winch, hydraulic puller, or mechanical gripper, based on the size and type of the stuck pig.
Attach the Tool: Secure the retrieval tool to the pig, ensuring it is properly connected and will not slip or disengage during the retrieval process.
Gradual Force Application: Apply gradual force to pull the pig back. Avoid sudden jerks or excessive force, as this can damage the pig or the pipeline.
Monitor for Movement: Continue applying controlled force until the pig is freed from the stuck position. If resistance is encountered, assess whether further adjustments are needed to avoid damaging the pipeline.
If a pipeline pig is stuck due to a blockage, it’s essential to inspect the pipeline to identify and clear the obstruction. Blockages can occur from rust, scale, debris, or even environmental factors. Here’s how to proceed:
Use Inspection Tools: Utilize inline inspection tools such as smart pigs, camera inspections, or ultrasonic devices to identify the exact location and cause of the blockage.
Clear the Obstruction: Once the blockage is located, use appropriate cleaning methods like mechanical scrapers, flushing with high-pressure water, or chemical cleaning agents to remove the obstruction.
Re-Check the Pig Movement: After clearing the blockage, try pushing the pig again to see if it moves smoothly through the pipeline. If the pig is still stuck, further investigation may be necessary.
In some cases, it may be necessary to combine multiple techniques to successfully remove a stuck pig. For example, you can try reversing the flow to loosen the pig, followed by applying a pulling tool if necessary. If the pig is lodged in a bend or elbow, using high-pressure cleaning to loosen it, along with flow reversal, may be effective.
Additionally, consider using a combination of mechanical tools and pipeline flushing to address any debris buildup that may be contributing to the problem. Ensure that all tools and techniques are compatible with the pipeline’s specifications and that they won’t cause damage to the pipeline or equipment.
While getting a stuck pig out of a pipeline can be challenging, there are several preventive measures you can take to reduce the likelihood of this occurring in the future:
Regular Maintenance: Perform routine pipeline maintenance and cleaning to remove any debris, buildup, or scale that could obstruct pig movement.
Choose the Right Pig: Ensure that the pig you are using is the correct size for your pipeline and designed for the specific tasks you intend to perform (e.g., cleaning, inspection, or separation).
Use Smart Pigs: Consider using smart pigs equipped with sensors that can provide real-time data about the condition of the pipeline and the pig’s movement, helping to identify potential issues before they become problems.
Improve Pipeline Design: Where possible, optimize the pipeline’s design by eliminating sharp bends or constrictions that could cause pigs to become stuck. This includes using larger diameter sections or installing pig launchers and receivers designed for smoother pig movement.
If you’ve exhausted all available techniques and the pipeline pig remains stuck, it may be time to seek professional assistance. Pipeline service providers have specialized tools and expertise to handle more complex stuck pig situations. In some cases, pigs may be lodged in hard-to-reach areas or in pipelines that are under pressure, requiring professional intervention to safely and efficiently remove the pig.
Professional help can also be useful if the stuck pig is causing significant delays or risks to pipeline operation, as they can offer rapid response and troubleshooting to minimize downtime.

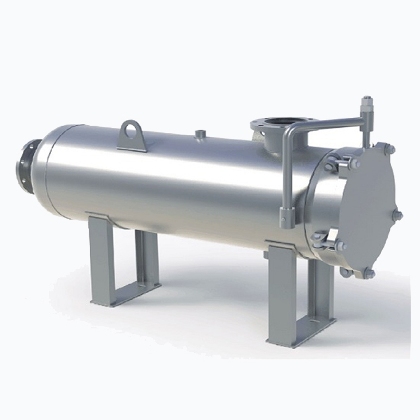

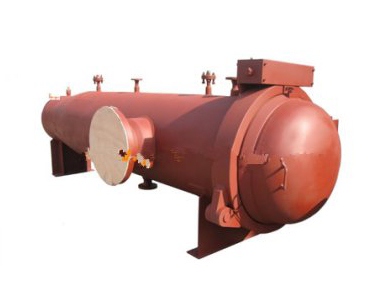

Pig Launchers and Receivers are essential components in pigging pipeline, serving as pressure-containing units for tasks such as maintenance, cleaning, and inline inspection. They enable operators to launch and receive pipeline pigs seamlessly, ensuring uninterrupted pipeline operations without disturbing the line contents.
Getting a pipeline pig unstuck requires a methodical approach, careful inspection, and the right tools. By first identifying the cause of the issue, attempting to reverse the flow, using pulling tools, and inspecting the pipeline for blockages, you can address the problem effectively. Preventative measures, such as proper maintenance and using the right equipment, will help reduce the likelihood of future issues. In cases where the problem persists, don’t hesitate to consult professional pipeline services to ensure safe and efficient resolution.
