Pipe fittings and piping systems play an essential role in various industries, from construction and manufacturing to plumbing and HVAC systems. The correct selection and installation of pipe fittings ensure a secure and leak-proof connection, which is vital for the safe transport of fluids, gases, or other materials. This complete guide will walk you through the different types of pipe fittings, their functions, and best practices for establishing strong piping system connections.

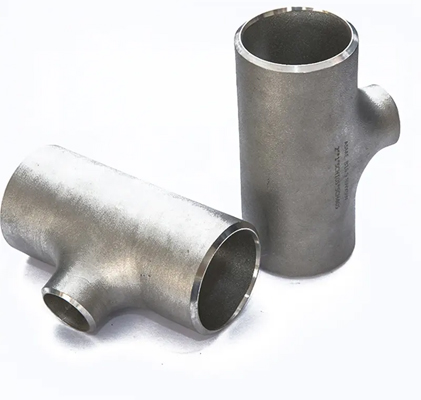

Pipe fittings come in a variety of shapes, sizes, and materials to accommodate different piping systems. The most common types of pipe fittings include elbows, tees, couplings, reducers, caps, and unions. Each fitting serves a specific purpose in connecting or altering the direction of the piping system. Elbows, for instance, allow pipes to change direction, while tees enable the splitting or merging of flow. Couplings are used to connect two pipes together, and reducers decrease the pipe size to control flow rates.
These fittings are made from materials such as steel, copper, PVC, and brass, each chosen based on the medium being transported and the operating environment. For example, copper fittings are often used in plumbing systems due to their resistance to corrosion, while PVC fittings are popular for non-corrosive applications.
The materials used in piping systems directly affect the durability, temperature resistance, and pressure-handling capacity of the system. Steel and stainless steel are commonly used for industrial applications that require strength and high-temperature resistance. Copper is ideal for plumbing and refrigeration due to its excellent thermal conductivity and resistance to corrosion. PVC and CPVC are widely used for their cost-effectiveness and ease of installation, especially in residential and low-pressure applications.
Choosing the right material is essential to avoid issues like corrosion, leaks, and premature wear. Additionally, material compatibility between the pipe and fittings must be considered to ensure a strong, leak-free connection.
Several methods are used to connect pipe fittings, depending on the type of piping system and the materials involved. Threaded connections are one of the most common methods for metal pipes and fittings. In this method, male and female threads are cut into the pipes and fittings, allowing them to be screwed together. Proper sealing, usually with the help of Teflon tape or pipe dope, is necessary to prevent leaks.
Welding is another common connection method, especially for steel and stainless-steel pipes. Welded joints provide a strong and permanent connection, making them suitable for high-pressure and high-temperature systems. However, welding requires skilled labor and specialized equipment.
For PVC and CPVC piping, solvent welding is typically used. This involves applying a chemical solvent to the pipe and fitting, which softens the material and allows them to fuse. Once the solvent evaporates, the joint becomes strong and watertight.
Proper installation techniques are crucial for ensuring the longevity and safety of piping systems. When installing threaded fittings, it is important to avoid over-tightening, which can crack the fitting or strip the threads. Conversely, under-tightening can lead to leaks. Always use the correct amount of sealant or tape to create a secure connection.
For welded and solvent-welded connections, cleanliness is key. Ensure that all surfaces are clean and free from debris before making the connection. Any contamination can weaken the joint and lead to failure. Additionally, follow manufacturer instructions for curing times to allow the joint to set properly.
Regular maintenance and inspection of piping systems are essential to identify potential issues before they lead to system failure. Check for signs of corrosion, leaks, or any unusual wear on the fittings and pipes. Pressure testing the system periodically can help detect weaknesses that may not be visible during a visual inspection.
Proper maintenance also includes ensuring that all joints remain tight and that there are no signs of movement or shifting in the piping system, which could cause stress on the connections.
Q1: How do I know which pipe fitting material to choose?
A: The material should be chosen based on the medium being transported, the operating temperature, and the pressure requirements of the system. For example, copper is great for plumbing, while steel is ideal for industrial applications.
Q2: What is the best method for connecting steel pipes?
A: Welding is often the preferred method for connecting steel pipes, as it provides a strong and permanent connection. However, threaded connections can also be used in lower-pressure systems.
Q3: How can I prevent leaks in my pipe fittings?
A: To prevent leaks, ensure proper tightening of the fittings, use the correct sealant or tape, and follow best practices for installation. Regular inspections can also help detect potential issues early.
Q4: How often should I inspect my piping system?
A: Piping systems should be inspected periodically, especially after installation and during routine maintenance. The frequency will depend on the system's usage and operating conditions.
