Pipe fittings play a critical role in plumbing, manufacturing, and industrial applications. They are essential for connecting, controlling, and adapting the flow of liquids, gases, and other materials within a piping system. Understanding the different types of pipe fittings is crucial for ensuring the proper assembly and functioning of pipes in various applications. From elbows to couplings, each fitting serves a unique purpose. In this article, we will explore the various types of pipe fittings, their uses, and how to choose the right fitting for your system.

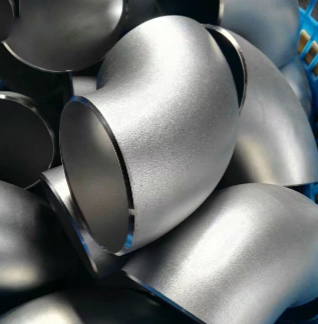

Elbows are one of the most common types of pipe fittings used to change the direction of flow in a piping system. They are available in 45-degree and 90-degree angles, allowing for flexibility in pipe routing. Elbows are ideal for navigating around obstacles and ensuring that the pipe system follows the necessary path. They are used in plumbing, irrigation, and HVAC systems, among other applications. Depending on the material of the pipe, elbows can be made from materials like PVC, stainless steel, copper, and more.
Tee fittings are shaped like the letter "T" and are used to create a branch line from the main pipeline. They are crucial when the system requires the flow of fluid or gas to split into two separate paths. Tee fittings have one inlet and two outlets at 90-degree angles to the main pipe. They are used in plumbing systems to divert water to different areas of a building and are also common in industries such as chemical processing, oil, and gas.
Couplings are simple fittings used to connect two pipes of the same diameter, allowing them to function as a continuous length. They are typically used when a pipe needs to be extended or repaired. There are several types of couplings, including compression couplings, slip couplings, and threaded couplings. Some couplings are designed to be permanent, while others, like the slip coupling, can be removed for repairs and maintenance.
Reducers are used to connect pipes of different diameters. They are essential when there is a need to change the pipe size in a system to accommodate varying flow requirements. Reducers can be concentric or eccentric, with concentric reducers maintaining the pipe’s central alignment and eccentric reducers used when the pipes are not on the same level. Reducers are often found in chemical processing plants, oil refineries, and water treatment systems.
Caps and plugs are fittings used to seal the ends of a pipe. Caps are designed to fit over the end of a pipe, while plugs fit inside the pipe. These fittings are used to stop the flow of fluid or gas, typically during testing or maintenance. They are also used to terminate unused pipe lines. Caps and plugs are made from various materials, including brass, plastic, and stainless steel, depending on the piping system's requirements.

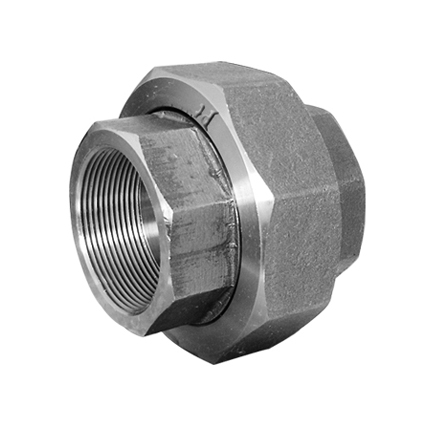

Unions are used to connect two pipes in a way that allows for easy disconnection and reconnection. Unlike couplings, which are typically permanent, unions are designed for temporary connections that may need to be dismantled during maintenance or inspection. Unions consist of three parts: a nut, a female end, and a male end. They are used in applications where frequent assembly and disassembly are required, such as in refrigeration systems or gas piping.

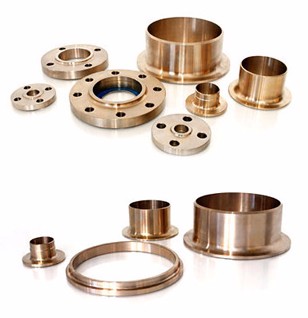

Flanges are fittings used to connect pipes, valves, pumps, and other equipment in piping systems by bolting them together. They provide a strong, leak-proof connection that can withstand high pressure. Flanges are commonly found in industrial applications, including oil and gas pipelines, power plants, and chemical processing systems. They can be used in both high-temperature and low-temperature environments. Flange fittings are usually welded or screwed onto the pipe ends and sealed with a gasket between the flanges to prevent leakage.
Q: What material should I choose for my pipe fittings?
A: The material of the pipe fittings depends on the type of fluid or gas being transported and the environment. Common materials include PVC for low-pressure applications, copper for plumbing, and stainless steel for high-pressure or corrosive environments.
Q: Can I use the same fittings for gas and water pipes?
A: No, it is essential to choose the right fitting designed for the specific application. Gas pipes and fittings often require more robust and durable materials compared to water pipes due to the different pressure and safety standards involved.
Q: How do I know what size pipe fitting to use?
A: Pipe fittings come in standard sizes based on the diameter of the pipe they are designed to fit. You should always match the fitting size to the diameter of your pipe to ensure a proper connection. Measure the pipe's outside diameter to choose the correct fitting size.
Q: What are the signs of a faulty pipe fitting?
A: Signs of faulty pipe fittings include leaks, corrosion, and visible wear and tear. It is essential to inspect your fittings regularly and replace any that show signs of damage to prevent larger issues within your piping system.
In conclusion, pipe fittings are a critical part of any piping system, ensuring the proper flow and connection of liquids and gases. From elbows and tees to reducers and flanges, each fitting serves a unique purpose, and selecting the right one is essential for the performance and longevity of your system.
