What Is a U Bolt and How to Measure It?

A U-bolt is a type of fastener that consists of a U-shaped bolt with threaded ends and a plate or saddle that fits over the top of the U-bolt. It is commonly used to secure or attach pipes, poles, and other objects to surfaces or structures. U-bolts are versatile and provide a strong, stable connection. Properly measuring a U-bolt is essential to ensure the right fit for your specific application. In this guide, we will explain what a U-bolt is and how to measure it accurately.

What is a U-bolt made of?

U-bolts are typically made of steel, stainless steel, or other high-strength materials. The material chosen depends on the intended application, as factors such as load capacity, corrosion resistance, and environmental conditions play a role in the selection.

Types of U-bolts:

There are different types of U-bolts designed to meet various requirements. Here are a few common types:

• Round U-bolt: This is the most basic and widely used type. It has a U-shaped bend and two threaded ends to secure objects.

• Square U-bolt: As the name suggests, this type has a square-shaped U-bend and is commonly used when securing square or rectangular objects.

• Semi-Round U-bolt: This type has a partial bend, with one leg flat and the other leg curved. It is often used in applications where the flat leg rests against a surface or structure.

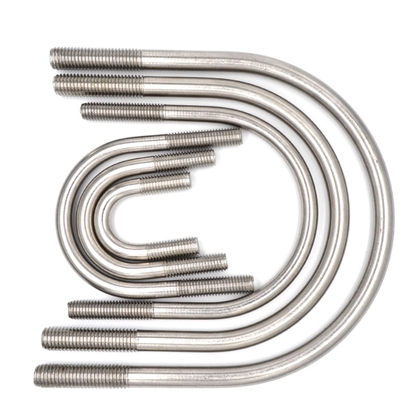

U Bolt

Measuring a U-bolt:

To measure a U-bolt accurately, follow these steps:

Determine the Diameter:

The diameter of a U-bolt is measured by the distance between the inside surfaces of the legs. Use a caliper or measuring tape to measure the space between the legs at the widest point. This measurement will be referred to as the "diameter" of the U-bolt.

Measure the Thread Length:

The thread length refers to the portion of the U-bolt that is threaded. Measure from the bottom of one threaded end to the bottom of the opposite threaded end to determine the thread length. It is important to measure the actual length of the threads, excluding the non-threaded portion of the bolt.

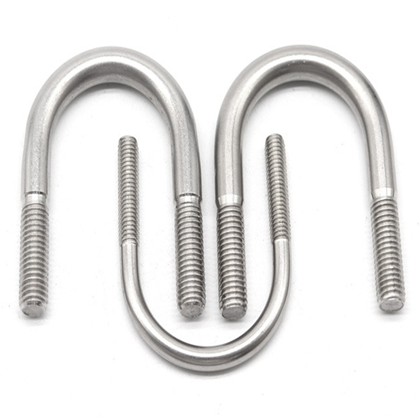

 Customized U Bolts

Determine the Inside Width:

The inside width is the distance between the inside surfaces of the legs. Use a caliper or measuring tape to measure the space between the legs at the narrowest point. This measurement will be referred to as the "inside width" of the U-bolt.

Determine the Inside Length:

The inside length is the distance between the bottom of the U-bolt's legs. Measure the length between the bottom of one leg to the bottom of the opposite leg. This measurement will be referred to as the "inside length" of the U-bolt.

It is important to note that the specific requirements for U-bolt measurements may vary depending on the application and industry standards. Therefore, always refer to the specific guidelines provided by the manufacturer or consult with a professional if you have any doubts.

Choosing the Right U-bolt:

Once you have measured the U-bolt accurately, you can select the appropriate size for your application. Consider the load capacity, material strength, and environmental conditions to ensure the U-bolt is suitable for the intended use. It is recommended to consult with a specialist or follow industry standards when selecting U-bolts, especially for critical applications or those involving high loads.

In conclusion, a U-bolt is a versatile fastener commonly used to secure or attach objects to surfaces or structures. Measuring a U-bolt accurately involves determining the diameter, thread length, inside width, and inside length. By taking precise measurements and considering the specific requirements of your application, you can select the right U-bolt for a secure and reliable connection.
